API Design Part 4: Versioning & Idempotency

API Design Mastery Series

This is Part 4 of our comprehensive API Design series.

Part	Topic	Level
1	HTTP & REST Fundamentals	Beginner
2	Security & Authentication	Beginner
3	Rate Limiting & Pagination	Intermediate
4	Versioning & Idempotency	Intermediate
5	Caching Strategies	Intermediate
6	GraphQL & gRPC	Intermediate
7	Resilience & Observability	Advanced
8	Production Mastery	Advanced

---

API Versioning Strategies

The Complete Versioning Matrix

Strategy	Example	Discoverability	Caching	Client Simplicity
URL	/v1/users	Excellent	Excellent	Excellent
Headers	X-API-Version: 1	Poor	Requires Vary	Moderate
Content-Type	Accept: application/vnd.api+json;version=1	Poor	Requires Vary	Poor
Query Param	/users?version=1	Moderate	Moderate	Good

Multi-Version API Architecture

// version-router.ts - Clean version routing

import { Hono } from 'hono';

// Version-specific handlers
import * as v1Users from './v1/users';
import * as v2Users from './v2/users';

const app = new Hono();

// URL-based versioning (recommended for public APIs)
const v1 = new Hono();
const v2 = new Hono();

// V1 routes
v1.get('/users', v1Users.list);
v1.get('/users/:id', v1Users.get);
v1.post('/users', v1Users.create);

// V2 routes (with breaking changes)
v2.get('/users', v2Users.list);      // Different response shape
v2.get('/users/:id', v2Users.get);
v2.post('/users', v2Users.create);
v2.get('/users/:id/profile', v2Users.getProfile); // New endpoint

app.route('/v1', v1);
app.route('/v2', v2);

// Header-based versioning (for internal APIs)
app.use('/api/*', async (c, next) => {
  const version = c.req.header('X-API-Version') || '2';
  c.set('apiVersion', version);
  await next();
});

// Deprecation middleware
app.use('/v1/*', async (c, next) => {
  c.header('Deprecation', 'true');
  c.header('Sunset', 'Sat, 31 Dec 2025 23:59:59 GMT');
  c.header('Link', '</v2>; rel="successor-version"');
  await next();
});

export default app;

Version Migration Lifecycle

Phase	Status	What Happens	Duration
Development	Internal	Not publicly accessible	As needed
Active	Default	v2 default for new integrations, v1 fully supported	Indefinite
Deprecated	Warning	Deprecation headers added, migration guides published	6-12 months
Sunset	Ending	Returns 410 Gone, optional proxy to v2	1-3 months
Removed	Archived	Endpoints deleted, docs archived	Permanent

---

Idempotency for Reliable APIs

Why Idempotency Matters

Network failures happen. Clients retry. Without idempotency, a payment API retry could charge a customer twice. Idempotency ensures that making the same request multiple times has the same effect as making it once.

The Problem:

1. Client sends POST /payments
2. Server processes request successfully
3. Response times out (network issue)
4. Client retries with same request
5. Without idempotency: Double charge!
6. With idempotency: Server returns cached response - safe!

Production Idempotency Implementation

// idempotency.ts - Stripe-style idempotency keys

import { Redis } from 'ioredis';
import { createHash } from 'crypto';

interface IdempotencyRecord {
  status: 'processing' | 'complete';
  response?: {
    statusCode: number;
    body: string;
    headers: Record<string, string>;
  };
  requestHash: string;
  createdAt: number;
  completedAt?: number;
}

interface IdempotencyConfig {
  keyTTL: number;          // How long to keep keys (24 hours default)
  lockTTL: number;         // Max processing time (60 seconds)
  headerName: string;      // Idempotency-Key
}

export class IdempotencyService {
  private redis: Redis;
  private config: IdempotencyConfig;

  constructor(redis: Redis, config?: Partial<IdempotencyConfig>) {
    this.redis = redis;
    this.config = {
      keyTTL: 86400,           // 24 hours
      lockTTL: 60,             // 60 seconds
      headerName: 'Idempotency-Key',
      ...config
    };
  }

  // Hash request body to detect changed requests with same key
  private hashRequest(body: unknown): string {
    return createHash('sha256')
      .update(JSON.stringify(body))
      .digest('hex')
      .slice(0, 16);
  }

  async processRequest(
    idempotencyKey: string,
    requestBody: unknown,
    handler: () => Promise<Response>
  ): Promise<Response> {
    const redisKey = `idempotency:${idempotencyKey}`;
    const requestHash = this.hashRequest(requestBody);

    // Try to acquire lock or get existing record
    const existingRecord = await this.getOrLock(redisKey, requestHash);

    if (existingRecord) {
      // Request already processed or in progress
      if (existingRecord.status === 'complete' && existingRecord.response) {
        // Return cached response
        return new Response(existingRecord.response.body, {
          status: existingRecord.response.statusCode,
          headers: {
            ...existingRecord.response.headers,
            'Idempotency-Replayed': 'true'
          }
        });
      }

      if (existingRecord.status === 'processing') {
        // Another request is processing - conflict
        return new Response(
          JSON.stringify({
            success: false,
            error: {
              code: 'IDEMPOTENCY_CONFLICT',
              message: 'A request with this idempotency key is already being processed'
            }
          }),
          { status: 409 }
        );
      }

      // Check if request body changed (misuse of idempotency key)
      if (existingRecord.requestHash !== requestHash) {
        return new Response(
          JSON.stringify({
            success: false,
            error: {
              code: 'IDEMPOTENCY_MISMATCH',
              message: 'Request body changed for existing idempotency key'
            }
          }),
          { status: 422 }
        );
      }
    }

    // Process the request
    try {
      const response = await handler();

      // Cache the response
      await this.cacheResponse(redisKey, requestHash, response.clone());

      return response;
    } catch (error) {
      // Release the lock on error
      await this.releaseLock(redisKey);
      throw error;
    }
  }

  private async getOrLock(
    key: string,
    requestHash: string
  ): Promise<IdempotencyRecord | null> {
    // Atomic check-and-set using Lua script
    const script = `
      local key = KEYS[1]
      local request_hash = ARGV[1]
      local lock_ttl = tonumber(ARGV[2])
      local now = tonumber(ARGV[3])

      local existing = redis.call('GET', key)

      if existing then
        return existing
      end

      -- Create processing record
      local record = cjson.encode({
        status = 'processing',
        requestHash = request_hash,
        createdAt = now
      })

      redis.call('SET', key, record, 'EX', lock_ttl, 'NX')

      return nil
    `;

    const result = await this.redis.eval(
      script,
      1,
      key,
      requestHash,
      this.config.lockTTL,
      Date.now()
    );

    return result ? JSON.parse(result as string) : null;
  }

  private async cacheResponse(
    key: string,
    requestHash: string,
    response: Response
  ): Promise<void> {
    const body = await response.text();
    const headers: Record<string, string> = {};
    response.headers.forEach((value, name) => {
      headers[name] = value;
    });

    const record: IdempotencyRecord = {
      status: 'complete',
      requestHash,
      createdAt: Date.now(),
      completedAt: Date.now(),
      response: {
        statusCode: response.status,
        body,
        headers
      }
    };

    await this.redis.set(
      key,
      JSON.stringify(record),
      'EX',
      this.config.keyTTL
    );
  }

  private async releaseLock(key: string): Promise<void> {
    await this.redis.del(key);
  }
}

// Middleware usage
export function idempotencyMiddleware(
  service: IdempotencyService,
  methods: string[] = ['POST', 'PUT', 'PATCH']
) {
  return async (req: Request, handler: () => Promise<Response>): Promise<Response> => {
    if (!methods.includes(req.method)) {
      return handler();
    }

    const idempotencyKey = req.headers.get('Idempotency-Key');

    if (!idempotencyKey) {
      return handler(); // Optional: require key for certain endpoints
    }

    // Validate key format (UUID recommended)
    if (!/^[a-zA-Z0-9-_]{16,64}$/.test(idempotencyKey)) {
      return new Response(
        JSON.stringify({
          success: false,
          error: {
            code: 'INVALID_IDEMPOTENCY_KEY',
            message: 'Idempotency key must be 16-64 alphanumeric characters'
          }
        }),
        { status: 400 }
      );
    }

    const body = await req.clone().json().catch(() => ({}));
    return service.processRequest(idempotencyKey, body, handler);
  };
}

Interview Question: “How would you implement idempotency for a payment processing API?”

Strong Answer: “I’d use client-provided idempotency keys stored in Redis or a database. Here’s the approach:

1. Key generation: Client generates UUID v4 before request, stores it locally
2. Request processing:
   • Check if key exists in storage
   • If exists with ‘complete’ status, return cached response
   • If exists with ‘processing’ status, return 409 Conflict
   • If new, create record with ‘processing’ status (acts as lock)
3. Completion: Update record with response, set TTL (24 hours typically)
4. Safety: Hash request body - if client reuses key with different body, reject with 422

Critical edge cases:

• Network timeout during processing: client retries, sees ‘processing’, waits and retries
• Server crash during processing: record expires after lock TTL, client can retry
• Response body change detection: prevents accidental misuse of idempotency keys”

---

Breaking vs Non-Breaking Changes

Understanding what breaks clients is essential for API evolution:

Change Type	Breaking?	Example
Add optional field	No	Adding middleName?: string to response
Add required field	Yes	Adding taxId: string required in request
Remove field	Yes	Removing legacyId from response
Rename field	Yes	userName → username
Change field type	Yes	age: string → age: number
Add enum value	Depends	New status: 'archived' - clients must handle unknown
Change URL	Yes	/users → /v2/users
Add new endpoint	No	Adding GET /users/:id/preferences
Change error format	Yes	Different error response structure

Additive Changes (Safe)

// v1 response
{ "id": "123", "name": "John" }

// v2 response (backward compatible)
{ "id": "123", "name": "John", "createdAt": "2025-01-01T00:00:00Z" }

// Clients ignoring unknown fields will work fine

Breaking Changes (Require New Version)

// v1: Returns array
GET /users → [{ id: "1", name: "John" }]

// v2: Returns object with pagination (BREAKING)
GET /users → { data: [...], meta: { total: 100 } }

// Must be a new version - v1 clients expect array

---

Common Versioning Mistakes

Mistake	Problem	Fix
Breaking change without version	Breaks existing clients	Always version breaking changes
Too many versions	Maintenance nightmare	Deprecate aggressively, max 2-3 live
No deprecation notice	Surprise breakage	12-month minimum notice
Version in request body	Hard to route at gateway	Use URL or headers
Different versioning per endpoint	Confusing	Consistent strategy across API
No sunset date	Versions live forever	Define lifecycle upfront

---

Idempotency Common Mistakes

Mistake	Problem	Fix
Optional idempotency keys	Some requests not protected	Require for all mutations
Key tied to user session	Can’t retry from different session	Key should be request-scoped
Short TTL	Key expires before client can retry	24 hours minimum
No body hash	Same key, different request accepted	Hash and compare request body
Storing full response	Storage bloat	Store only what’s needed to reconstruct
No lock mechanism	Race conditions	Use Redis SETNX or similar

---

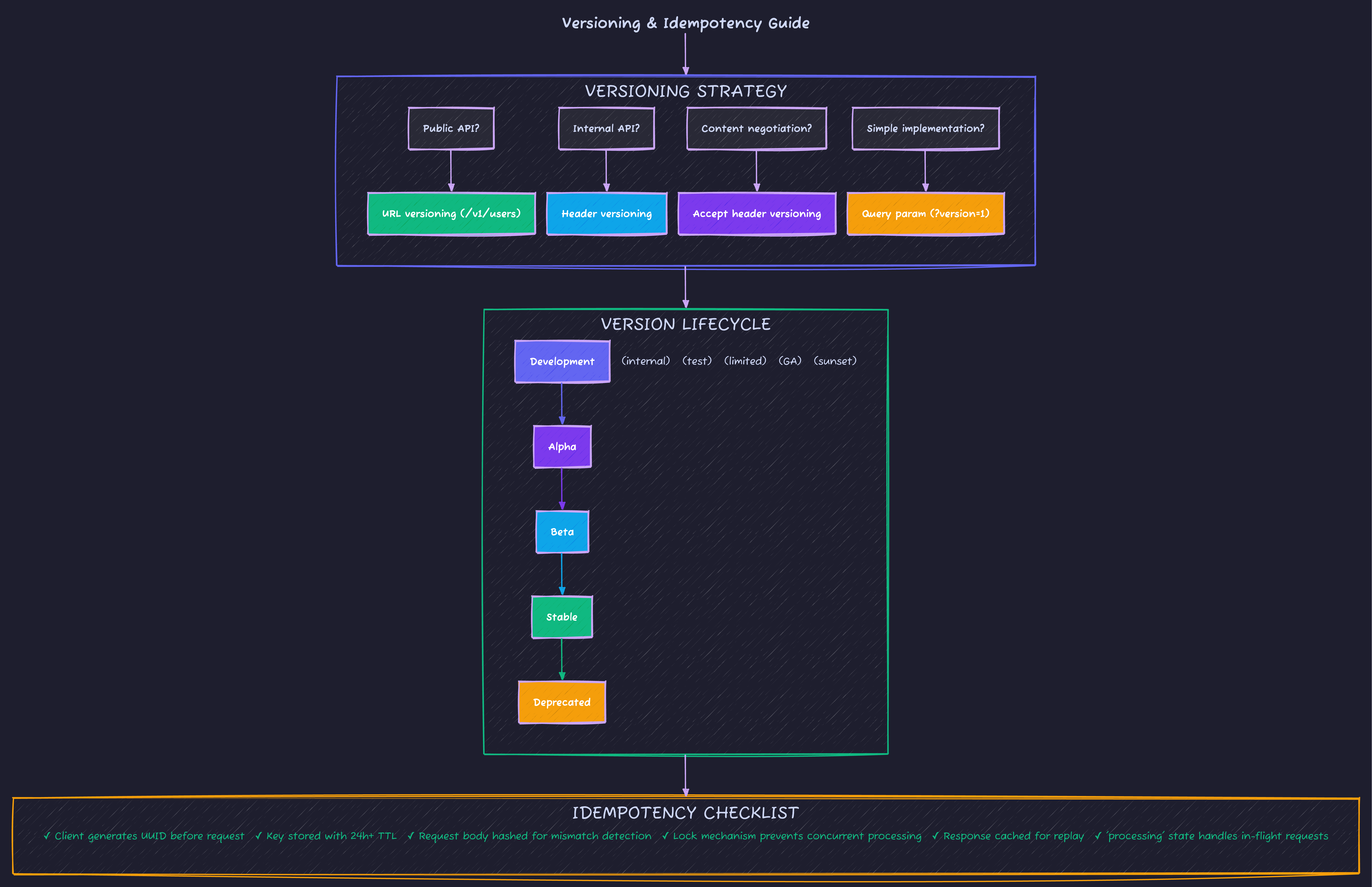

Versioning Quick Reference

---

What’s Next?

Now that you understand API reliability, Part 5: Caching Strategies covers multi-layer caching architectures and cache invalidation patterns.
