API Design Part 2: Security & Authentication

API Design Mastery Series

This is Part 2 of our comprehensive API Design series.

Part	Topic	Level
1	HTTP & REST Fundamentals	Beginner
2	Security & Authentication	Beginner
3	Rate Limiting & Pagination	Intermediate
4	Versioning & Idempotency	Intermediate
5	Caching Strategies	Intermediate
6	GraphQL & gRPC	Intermediate
7	Resilience & Observability	Advanced
8	Production Mastery	Advanced

---

The Security Layers

API security isn’t a single concern - it’s a layered defense strategy. Each layer protects against different attack vectors.

Layer	Components	Protects Against
Application	Input validation, output encoding	SQL injection, XSS
Session/Token	JWT validation, session management	Session hijacking
Authentication	OAuth 2.0, API Keys, mTLS	Identity spoofing
Rate Limiting	Request throttling, quotas	DDoS, abuse
Transport	TLS 1.3, HSTS	Man-in-the-middle
Network	Firewall, VPC isolation	Unauthorized access

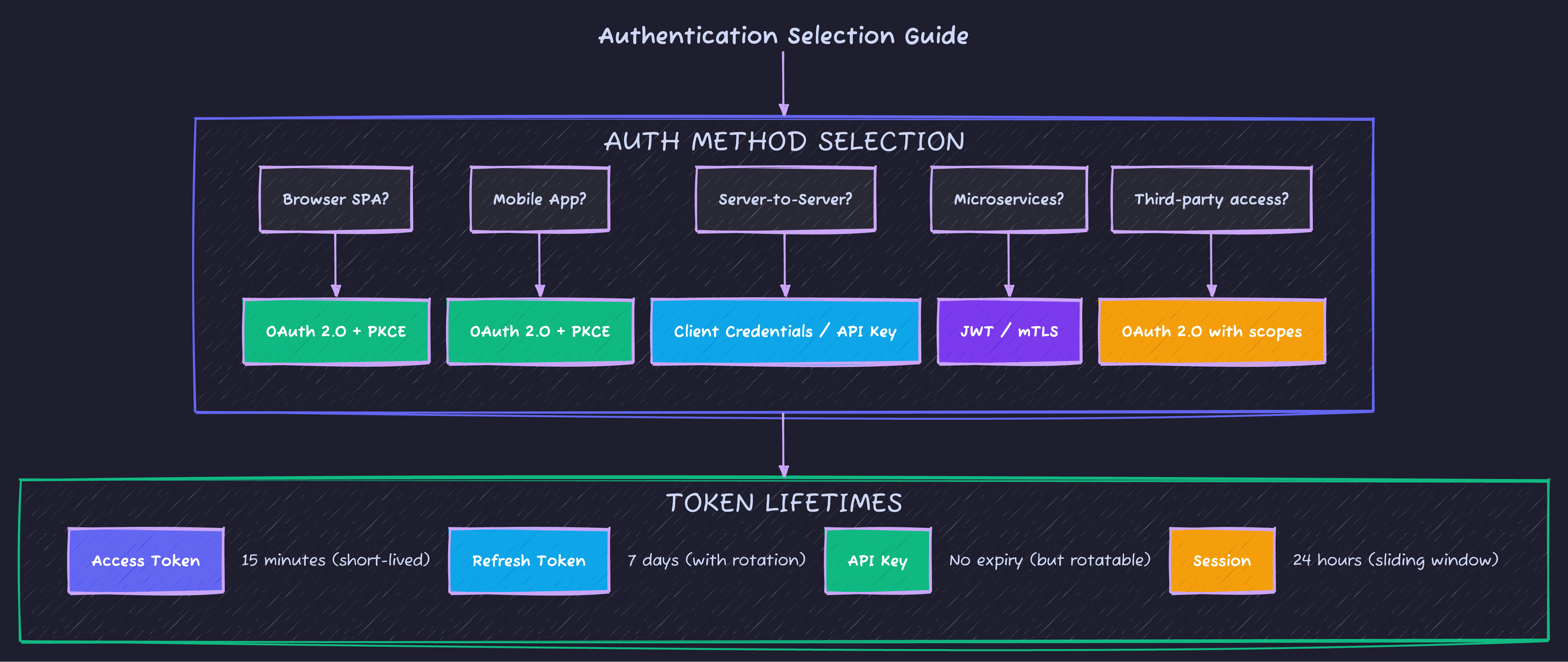

Authentication Methods Compared

Method	Use Case	Pros	Cons
API Keys	Server-to-server, simple integrations	Easy to implement, no expiry needed	Can’t revoke single key easily, often over-permissioned
JWT	Stateless auth, microservices	No DB lookup, contains claims	Can’t revoke before expiry, size grows with claims
OAuth 2.0	Third-party access, user consent	Scoped permissions, standard flows	Complex, requires token exchange
mTLS	Service mesh, high-security APIs	Strong identity, mutual auth	Certificate management overhead
Session Cookies	Traditional web apps	Simple, browser handles	Stateful, CSRF vulnerable

JWT Implementation: Production Grade

// jwt-service.ts - Battle-tested JWT implementation

import { SignJWT, jwtVerify, JWTPayload } from 'jose';
import { createHash, randomBytes } from 'crypto';

interface TokenConfig {
  accessTokenSecret: Uint8Array;
  refreshTokenSecret: Uint8Array;
  accessTokenTTL: string;      // '15m'
  refreshTokenTTL: string;     // '7d'
  issuer: string;
  audience: string;
}

interface UserClaims extends JWTPayload {
  sub: string;           // User ID
  email: string;
  roles: string[];
  permissions: string[];
  sessionId: string;     // For revocation
}

interface TokenPair {
  accessToken: string;
  refreshToken: string;
  expiresIn: number;
  tokenType: 'Bearer';
}

export class JWTService {
  private config: TokenConfig;
  private revokedSessions: Set<string> = new Set(); // In prod: Redis

  constructor(config: TokenConfig) {
    this.config = config;
  }

  async generateTokenPair(user: {
    id: string;
    email: string;
    roles: string[];
    permissions: string[];
  }): Promise<TokenPair> {
    const sessionId = randomBytes(16).toString('hex');
    const now = Math.floor(Date.now() / 1000);

    // Access token - short-lived, contains full claims
    const accessToken = await new SignJWT({
      email: user.email,
      roles: user.roles,
      permissions: user.permissions,
      sessionId
    })
      .setProtectedHeader({ alg: 'HS256', typ: 'JWT' })
      .setSubject(user.id)
      .setIssuer(this.config.issuer)
      .setAudience(this.config.audience)
      .setIssuedAt(now)
      .setExpirationTime(this.config.accessTokenTTL)
      .setJti(randomBytes(16).toString('hex')) // Unique token ID
      .sign(this.config.accessTokenSecret);

    // Refresh token - long-lived, minimal claims
    const refreshToken = await new SignJWT({
      sessionId,
      type: 'refresh'
    })
      .setProtectedHeader({ alg: 'HS256', typ: 'JWT' })
      .setSubject(user.id)
      .setIssuer(this.config.issuer)
      .setAudience(this.config.audience)
      .setIssuedAt(now)
      .setExpirationTime(this.config.refreshTokenTTL)
      .setJti(randomBytes(16).toString('hex'))
      .sign(this.config.refreshTokenSecret);

    return {
      accessToken,
      refreshToken,
      expiresIn: 900, // 15 minutes in seconds
      tokenType: 'Bearer'
    };
  }

  async verifyAccessToken(token: string): Promise<UserClaims> {
    try {
      const { payload } = await jwtVerify(token, this.config.accessTokenSecret, {
        issuer: this.config.issuer,
        audience: this.config.audience
      });

      // Check if session was revoked
      if (this.revokedSessions.has(payload.sessionId as string)) {
        throw new Error('Session revoked');
      }

      return payload as UserClaims;
    } catch (error) {
      if (error instanceof Error) {
        if (error.message.includes('expired')) {
          throw new TokenExpiredError('Access token expired');
        }
        if (error.message.includes('signature')) {
          throw new TokenInvalidError('Invalid token signature');
        }
      }
      throw new TokenInvalidError('Token validation failed');
    }
  }

  async refreshTokens(refreshToken: string): Promise<TokenPair> {
    const { payload } = await jwtVerify(
      refreshToken,
      this.config.refreshTokenSecret,
      {
        issuer: this.config.issuer,
        audience: this.config.audience
      }
    );

    if (payload.type !== 'refresh') {
      throw new TokenInvalidError('Not a refresh token');
    }

    if (this.revokedSessions.has(payload.sessionId as string)) {
      throw new TokenRevokedError('Session has been revoked');
    }

    // In production: Look up user from database
    const user = await this.getUserById(payload.sub as string);

    // Rotate refresh token (invalidate old one)
    this.revokedSessions.add(payload.sessionId as string);

    return this.generateTokenPair(user);
  }

  revokeSession(sessionId: string): void {
    this.revokedSessions.add(sessionId);
  }

  revokeAllUserSessions(userId: string): void {
    // In production: Clear all sessions for user in Redis
    // Pattern: sessions:user:{userId}:*
  }

  private async getUserById(id: string) {
    // Database lookup
    return { id, email: 'user@example.com', roles: ['user'], permissions: [] };
  }
}

// Custom error classes
class TokenExpiredError extends Error {
  constructor(message: string) {
    super(message);
    this.name = 'TokenExpiredError';
  }
}

class TokenInvalidError extends Error {
  constructor(message: string) {
    super(message);
    this.name = 'TokenInvalidError';
  }
}

class TokenRevokedError extends Error {
  constructor(message: string) {
    super(message);
    this.name = 'TokenRevokedError';
  }
}

OAuth 2.0 Flows: When to Use Which

Flow	Use Case	Security Level
Authorization Code + PKCE	SPAs, Mobile apps	Recommended
Authorization Code	Server-side apps	Good (with secret)
Client Credentials	Machine-to-machine	Recommended
Resource Owner Password	First-party apps only	Discouraged
Implicit	None	Deprecated

Authorization Code Flow with PKCE (Recommended)

// oauth-pkce.ts - Complete PKCE implementation

import { randomBytes, createHash } from 'crypto';

interface PKCEChallenge {
  codeVerifier: string;
  codeChallenge: string;
  codeChallengeMethod: 'S256';
}

interface OAuthConfig {
  clientId: string;
  redirectUri: string;
  authorizationEndpoint: string;
  tokenEndpoint: string;
  scopes: string[];
}

export function generatePKCE(): PKCEChallenge {
  // Code verifier: 43-128 character random string
  const codeVerifier = randomBytes(32)
    .toString('base64url')
    .slice(0, 43);

  // Code challenge: SHA256 hash of verifier, base64url encoded
  const codeChallenge = createHash('sha256')
    .update(codeVerifier)
    .digest('base64url');

  return {
    codeVerifier,
    codeChallenge,
    codeChallengeMethod: 'S256'
  };
}

export function buildAuthorizationUrl(
  config: OAuthConfig,
  pkce: PKCEChallenge,
  state: string
): string {
  const params = new URLSearchParams({
    response_type: 'code',
    client_id: config.clientId,
    redirect_uri: config.redirectUri,
    scope: config.scopes.join(' '),
    state,
    code_challenge: pkce.codeChallenge,
    code_challenge_method: pkce.codeChallengeMethod
  });

  return `${config.authorizationEndpoint}?${params}`;
}

export async function exchangeCodeForTokens(
  config: OAuthConfig,
  code: string,
  codeVerifier: string
): Promise<{
  accessToken: string;
  refreshToken?: string;
  expiresIn: number;
  tokenType: string;
  scope: string;
}> {
  const response = await fetch(config.tokenEndpoint, {
    method: 'POST',
    headers: {
      'Content-Type': 'application/x-www-form-urlencoded'
    },
    body: new URLSearchParams({
      grant_type: 'authorization_code',
      client_id: config.clientId,
      redirect_uri: config.redirectUri,
      code,
      code_verifier: codeVerifier
    })
  });

  if (!response.ok) {
    const error = await response.json();
    throw new OAuthError(error.error, error.error_description);
  }

  const data = await response.json();
  return {
    accessToken: data.access_token,
    refreshToken: data.refresh_token,
    expiresIn: data.expires_in,
    tokenType: data.token_type,
    scope: data.scope
  };
}

class OAuthError extends Error {
  constructor(public code: string, description: string) {
    super(description);
    this.name = 'OAuthError';
  }
}

Interview Question: “Why was the Implicit Flow deprecated?”

Strong Answer: “The Implicit Flow returned tokens directly in the URL fragment, creating several security issues: tokens exposed in browser history, server logs (if redirected), and vulnerable to token leakage through referrer headers. The Authorization Code Flow with PKCE solves this by never exposing tokens in URLs - the authorization code is exchanged server-side for tokens. PKCE adds protection even for public clients by proving the token requester is the same entity that started the flow.”

---

API Key Best Practices

// api-key.ts - Secure API key handling

interface APIKeyConfig {
  prefix: string;      // 'sk_live_', 'pk_test_'
  length: number;      // 32+ characters
}

// Generate cryptographically secure API key
export function generateAPIKey(config: APIKeyConfig): string {
  const randomPart = randomBytes(config.length).toString('base64url');
  return `${config.prefix}${randomPart}`;
}

// Store hashed version in database
export function hashAPIKey(key: string): string {
  return createHash('sha256').update(key).digest('hex');
}

// Validate API key (constant-time comparison)
export function validateAPIKey(provided: string, storedHash: string): boolean {
  const providedHash = hashAPIKey(provided);
  return timingSafeEqual(
    Buffer.from(providedHash),
    Buffer.from(storedHash)
  );
}

Best Practice	Why
Hash before storing	Compromised DB doesn’t leak keys
Use prefixes	Identify key type at glance (sk_live_, pk_test_)
Support multiple keys	Rotation without downtime
Log key prefix only	sk_live_...abc for audit trails
Scope by permission	Read-only vs full access keys

---

Essential Security Headers

// security-headers.ts - Production middleware

export function securityHeaders(req: Request, res: Response, next: () => void) {
  // Prevent clickjacking
  res.setHeader('X-Frame-Options', 'DENY');

  // Prevent MIME type sniffing
  res.setHeader('X-Content-Type-Options', 'nosniff');

  // Enable XSS filter
  res.setHeader('X-XSS-Protection', '1; mode=block');

  // Control referrer information
  res.setHeader('Referrer-Policy', 'strict-origin-when-cross-origin');

  // Content Security Policy
  res.setHeader('Content-Security-Policy', "default-src 'self'");

  // Force HTTPS
  res.setHeader('Strict-Transport-Security', 'max-age=31536000; includeSubDomains');

  // Permissions Policy (restrict browser features)
  res.setHeader('Permissions-Policy', 'geolocation=(), camera=(), microphone=()');

  next();
}

---

CORS Configuration

// cors.ts - Proper CORS setup

interface CorsConfig {
  allowedOrigins: string[];      // ['https://app.example.com']
  allowedMethods: string[];      // ['GET', 'POST', 'PUT', 'DELETE']
  allowedHeaders: string[];      // ['Content-Type', 'Authorization']
  exposedHeaders: string[];      // ['X-RateLimit-Remaining']
  maxAge: number;                // 86400 (preflight cache)
  credentials: boolean;          // true for cookies
}

export function corsMiddleware(config: CorsConfig) {
  return (req: Request, res: Response, next: () => void) => {
    const origin = req.headers.get('Origin');

    // Check if origin is allowed
    if (origin && config.allowedOrigins.includes(origin)) {
      res.setHeader('Access-Control-Allow-Origin', origin);
    }

    if (config.credentials) {
      res.setHeader('Access-Control-Allow-Credentials', 'true');
    }

    // Handle preflight
    if (req.method === 'OPTIONS') {
      res.setHeader('Access-Control-Allow-Methods', config.allowedMethods.join(', '));
      res.setHeader('Access-Control-Allow-Headers', config.allowedHeaders.join(', '));
      res.setHeader('Access-Control-Max-Age', String(config.maxAge));
      return res.status(204).end();
    }

    res.setHeader('Access-Control-Expose-Headers', config.exposedHeaders.join(', '));
    next();
  };
}

CORS Mistake	Risk	Fix
Access-Control-Allow-Origin: *	Any site can access	Whitelist specific origins
Reflecting any Origin header	CSRF-like attacks	Validate against whitelist
Exposing sensitive headers	Information leak	Only expose necessary headers

---

Common Security Mistakes

Mistake	Attack Vector	Prevention
SQL in string concat	SQL Injection	Parameterized queries
Reflecting user input	XSS	Output encoding
JWT in localStorage	XSS steals token	HttpOnly cookies
No rate limiting	Brute force, DDoS	Implement throttling
Verbose errors	Information disclosure	Generic error messages
Missing HTTPS	Man-in-the-middle	Force TLS everywhere
Long-lived tokens	Token theft window	Short expiry + refresh
No input validation	Various injections	Validate and sanitize

---

Security Quick Reference

---

What’s Next?

Now that you understand authentication and security layers, Part 3: Rate Limiting & Pagination covers protecting your API from abuse and efficiently serving large datasets.
