API Design Part 5: Caching Strategies

API Design Mastery Series

This is Part 5 of our comprehensive API Design series.

Part	Topic	Level
1	HTTP & REST Fundamentals	Beginner
2	Security & Authentication	Beginner
3	Rate Limiting & Pagination	Intermediate
4	Versioning & Idempotency	Intermediate
5	Caching Strategies	Intermediate
6	GraphQL & gRPC	Intermediate
7	Resilience & Observability	Advanced
8	Production Mastery	Advanced

---

The Caching Decision Framework

Question	If YES	If NO
Is data static?	CDN cache (1 year)	Continue checking…
Is data user-specific?	Private cache (short TTL)	Continue checking…
Is staleness acceptable?	stale-while-revalidate	no-cache, must-revalidate

HTTP Cache Headers Deep Dive

// cache-headers.ts - Complete cache header management

interface CacheConfig {
  type: 'public' | 'private' | 'no-store';
  maxAge?: number;
  sMaxAge?: number;                    // CDN/proxy cache time
  staleWhileRevalidate?: number;       // Serve stale while fetching
  staleIfError?: number;               // Serve stale on origin error
  mustRevalidate?: boolean;
  noCache?: boolean;                   // Always revalidate
  immutable?: boolean;                 // Never changes (with fingerprint)
}

export function buildCacheControl(config: CacheConfig): string {
  const directives: string[] = [];

  if (config.type === 'no-store') {
    return 'no-store';
  }

  directives.push(config.type);

  if (config.maxAge !== undefined) {
    directives.push(`max-age=${config.maxAge}`);
  }

  if (config.sMaxAge !== undefined) {
    directives.push(`s-maxage=${config.sMaxAge}`);
  }

  if (config.staleWhileRevalidate !== undefined) {
    directives.push(`stale-while-revalidate=${config.staleWhileRevalidate}`);
  }

  if (config.staleIfError !== undefined) {
    directives.push(`stale-if-error=${config.staleIfError}`);
  }

  if (config.mustRevalidate) {
    directives.push('must-revalidate');
  }

  if (config.noCache) {
    directives.push('no-cache');
  }

  if (config.immutable) {
    directives.push('immutable');
  }

  return directives.join(', ');
}

// Common patterns
export const cachePatterns = {
  // Static assets with fingerprinting (1 year)
  staticAsset: buildCacheControl({
    type: 'public',
    maxAge: 31536000,
    immutable: true
  }),

  // API response for public data (5 min cache, serve stale for 1 hour)
  publicApi: buildCacheControl({
    type: 'public',
    maxAge: 300,
    sMaxAge: 600,
    staleWhileRevalidate: 3600
  }),

  // User-specific data (1 min, private)
  privateApi: buildCacheControl({
    type: 'private',
    maxAge: 60
  }),

  // Sensitive data (never cache)
  sensitive: 'no-store',

  // Data that must be fresh but can use conditional requests
  alwaysValidate: buildCacheControl({
    type: 'public',
    noCache: true,
    mustRevalidate: true
  })
};

// ETag generation
export function generateETag(content: string | Buffer): string {
  const hash = createHash('sha256')
    .update(content)
    .digest('hex')
    .slice(0, 16);
  return `"${hash}"`;
}

// Weak ETag for semantic equivalence
export function generateWeakETag(version: number, lastModified: Date): string {
  return `W/"${version}-${lastModified.getTime()}"`;
}

// Conditional request handling
export function handleConditionalRequest(
  req: Request,
  currentETag: string,
  lastModified: Date
): Response | null {
  const ifNoneMatch = req.headers.get('If-None-Match');
  const ifModifiedSince = req.headers.get('If-Modified-Since');

  // ETag takes precedence
  if (ifNoneMatch) {
    const clientETags = ifNoneMatch.split(',').map(e => e.trim());
    if (clientETags.includes(currentETag) || clientETags.includes('*')) {
      return new Response(null, {
        status: 304,
        headers: {
          'ETag': currentETag,
          'Last-Modified': lastModified.toUTCString()
        }
      });
    }
  }

  if (ifModifiedSince) {
    const clientDate = new Date(ifModifiedSince);
    if (lastModified <= clientDate) {
      return new Response(null, {
        status: 304,
        headers: {
          'ETag': currentETag,
          'Last-Modified': lastModified.toUTCString()
        }
      });
    }
  }

  return null; // Proceed with full response
}

Multi-Layer Caching Architecture

The Five Caching Layers

Layer	Technology	Caches	TTL Range
1. Browser	Service Worker, HTTP Cache	Private, per-user	60s - 1 year
2. CDN Edge	Cloudflare, Fastly	Public, geographic	s-maxage based
3. API Gateway	Rate limiting, coalescing	Request dedup	Seconds
4. Application	Redis	Computed results, sessions	Minutes to hours
5. Database	Query cache, buffer pool	Query results	Query-specific

Cache Invalidation Patterns

Pattern	Use Case	Pros	Cons
TTL expiry	General caching	Simple	Stale data until expiry
Event-driven	Data changes	Immediate	Complex
Cache-aside	Read-heavy	Simple reads	Cache miss penalty
Write-through	Write-heavy	Consistent	Slower writes
Write-behind	Async writes	Fast writes	Data loss risk

// cache-invalidation.ts - Event-driven invalidation

export class CacheInvalidator {
  private redis: Redis;
  private pubsub: Redis;

  constructor(redis: Redis) {
    this.redis = redis;
    this.pubsub = redis.duplicate();
  }

  // Tag-based invalidation (like Cloudflare cache tags)
  async invalidateByTags(tags: string[]): Promise<void> {
    for (const tag of tags) {
      const keys = await this.redis.smembers(`tag:${tag}`);
      if (keys.length > 0) {
        await this.redis.del(...keys);
        await this.redis.del(`tag:${tag}`);
      }
    }

    // Notify other instances
    await this.redis.publish('cache:invalidate', JSON.stringify({ tags }));
  }

  // Set cache with tags
  async setWithTags(
    key: string,
    value: string,
    tags: string[],
    ttl: number
  ): Promise<void> {
    const multi = this.redis.multi();

    multi.set(key, value, 'EX', ttl);
    for (const tag of tags) {
      multi.sadd(`tag:${tag}`, key);
      multi.expire(`tag:${tag}`, ttl);
    }

    await multi.exec();
  }
}

Interview Question: “What’s the hardest problem in caching?”

Strong Answer: “Cache invalidation - Phil Karlton’s famous quote. The challenge is keeping cached data consistent with source of truth. Strategies depend on consistency requirements:

1. TTL-based: Simplest, but stale data until expiry. Good for data that can be eventually consistent.

2. Event-driven: Publish invalidation on data change. Best for strong consistency but adds complexity and points of failure.

3. Cache tags: Associate entries with tags, invalidate all entries with a tag. Great for related data (invalidate user:123’s posts when user changes).

4. Versioned keys: Include version in cache key. On write, increment version. Reads always get fresh data but orphan entries.

The right answer depends on business requirements. Stock prices need real-time accuracy; product catalog can be minutes stale.”

---

Cache Key Design Patterns

Proper cache keys prevent collisions and enable efficient invalidation:

// cache-keys.ts - Structured cache key generation

const CACHE_KEYS = {
  // User-specific data
  user: (id: string) => `user:${id}`,
  userProfile: (id: string) => `user:${id}:profile`,
  userPreferences: (id: string) => `user:${id}:preferences`,

  // Tenant-scoped data
  tenantUsers: (tenantId: string) => `tenant:${tenantId}:users`,
  tenantSettings: (tenantId: string) => `tenant:${tenantId}:settings`,

  // Query results with parameters
  userSearch: (tenantId: string, query: string, page: number) =>
    `tenant:${tenantId}:search:users:${hashQuery(query)}:p${page}`,

  // Version-tagged (for cache busting)
  config: (version: string) => `config:v${version}`,

  // Time-bucketed (auto-expires by design)
  metrics: (date: string) => `metrics:${date}`,
};

// Hash long query strings to keep keys short
function hashQuery(query: string): string {
  return createHash('md5').update(query).digest('hex').slice(0, 8);
}

Pattern	Example	Use Case
Hierarchical	user:123:profile	Related data, wildcard invalidation
Tenant-scoped	tenant:abc:users	Multi-tenant isolation
Version-tagged	config:v3	Config updates
Hash-based	search:a1b2c3d4	Long query parameters
Time-bucketed	metrics:2025-01-01	Time-series data

---

Common Caching Mistakes

Mistake	Problem	Fix
Cache everything	Memory exhaustion	Cache hot data, let cold data fall through
No TTL	Stale data forever	Always set expiration
Cache user data publicly	Privacy violation	Use private for user-specific data
Ignoring Vary header	Wrong cached response	Vary: Authorization for user data
Cache validation errors	4xx responses cached	Only cache successful responses
No cache metrics	Can’t measure effectiveness	Track hit/miss ratio
String keys with spaces	Cache key collisions	Normalize and hash keys

---

Cache Warming Strategies

Pre-populate cache before traffic hits:

// cache-warmer.ts - Proactive cache warming

export class CacheWarmer {
  async warmOnDeploy(): Promise<void> {
    // Warm frequently accessed, expensive-to-compute data
    const tasks = [
      this.warmPopularProducts(),
      this.warmCategoryTrees(),
      this.warmConfigData(),
    ];
    await Promise.all(tasks);
  }

  async warmOnSchedule(): Promise<void> {
    // Run every hour - refresh data before TTL expires
    const products = await db.product.findMany({
      where: { views: { gte: 1000 } },
      take: 100,
    });

    for (const product of products) {
      const data = await this.computeProductData(product.id);
      await cache.set(`product:${product.id}`, data, 3600);
    }
  }

  async warmOnWrite(productId: string): Promise<void> {
    // Immediately cache after database write
    const data = await this.computeProductData(productId);
    await cache.set(`product:${productId}`, data, 3600);
  }
}

Strategy	When	Benefit
On-deploy	After deployment	Prevents cold start latency
Scheduled	Before TTL expires	Always-warm cache
On-write	After data changes	Instant consistency
On-miss	Cache aside pattern	Simple, lazy loading

---

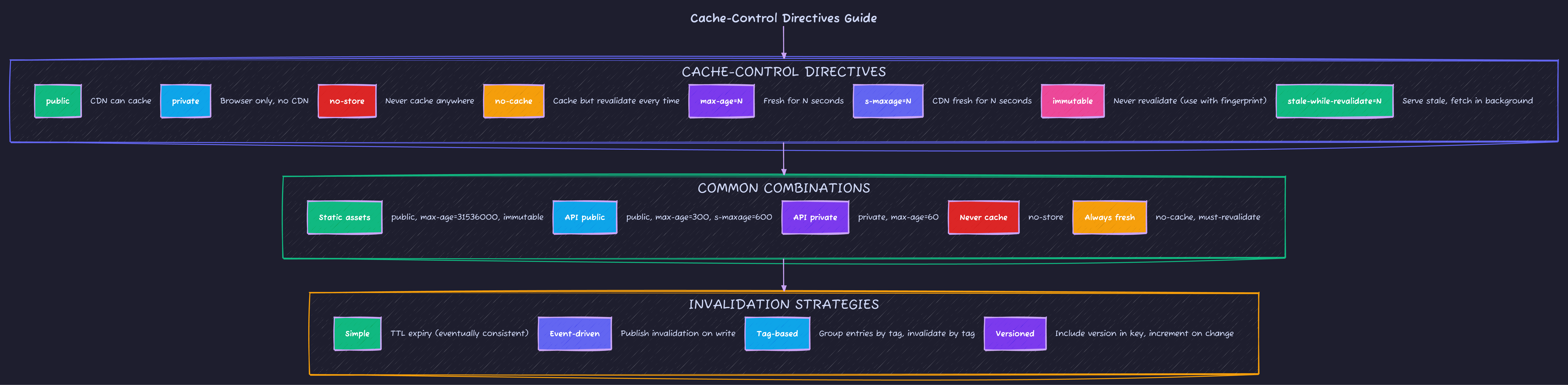

Caching Quick Reference

---

What’s Next?

Now that you understand caching, Part 6: GraphQL & gRPC covers modern API protocols beyond REST.
