API Design Part 6: GraphQL & gRPC

API Design Mastery Series

This is Part 6 of our comprehensive API Design series.

Part	Topic	Level
1	HTTP & REST Fundamentals	Beginner
2	Security & Authentication	Beginner
3	Rate Limiting & Pagination	Intermediate
4	Versioning & Idempotency	Intermediate
5	Caching Strategies	Intermediate
6	GraphQL & gRPC	Intermediate
7	Resilience & Observability	Advanced
8	Production Mastery	Advanced

---

REST vs GraphQL vs gRPC

Aspect	REST	GraphQL	gRPC
Data Fetching	Fixed endpoints	Client specifies	Strongly typed
Overfetching	Common	Solved	Minimal
Underfetching	Multiple requests	Single query	Streaming
Versioning	URL/header	Deprecation	Package versions
Caching	HTTP native	Custom	Custom
Real-time	Polling/WebSocket	Subscriptions	Bi-di streaming
Browser Support	Native	Native	Needs proxy
Best For	Public APIs	Mobile apps, complex UIs	Microservices

When to Use What

Consumer	Data Needs	Performance	Choose
External developers	Simple CRUD	Standard	REST
Same company frontend	Many views of same data	Standard	GraphQL
Internal microservices	High throughput	Critical	gRPC
Mobile apps	Bandwidth constrained	Important	GraphQL
Browser clients	Real-time updates	Standard	REST + WebSocket or GraphQL

GraphQL Implementation Patterns

// graphql-server.ts - Production GraphQL setup

import { createSchema, createYoga } from 'graphql-yoga';
import { createContext, Context } from './context';

// DataLoader for N+1 prevention
import DataLoader from 'dataloader';

interface User {
  id: string;
  email: string;
  name: string;
  organizationId: string;
}

interface Organization {
  id: string;
  name: string;
}

// Batch loading functions
async function batchLoadUsers(ids: readonly string[]): Promise<User[]> {
  const users = await db.user.findMany({
    where: { id: { in: [...ids] } }
  });
  // Must return in same order as input
  const userMap = new Map(users.map(u => [u.id, u]));
  return ids.map(id => userMap.get(id)!);
}

async function batchLoadOrganizations(ids: readonly string[]): Promise<Organization[]> {
  const orgs = await db.organization.findMany({
    where: { id: { in: [...ids] } }
  });
  const orgMap = new Map(orgs.map(o => [o.id, o]));
  return ids.map(id => orgMap.get(id)!);
}

// Create DataLoaders per request
function createLoaders() {
  return {
    user: new DataLoader(batchLoadUsers),
    organization: new DataLoader(batchLoadOrganizations)
  };
}

const typeDefs = /* GraphQL */ `
  type Query {
    user(id: ID!): User
    users(first: Int, after: String): UserConnection!
    me: User
  }

  type Mutation {
    updateUser(id: ID!, input: UpdateUserInput!): User!
    deleteUser(id: ID!): Boolean!
  }

  type User {
    id: ID!
    email: String!
    name: String!
    organization: Organization!
    posts(first: Int, after: String): PostConnection!
    createdAt: DateTime!
  }

  type Organization {
    id: ID!
    name: String!
    members(first: Int): UserConnection!
  }

  type UserConnection {
    edges: [UserEdge!]!
    pageInfo: PageInfo!
    totalCount: Int!
  }

  type UserEdge {
    node: User!
    cursor: String!
  }

  type PageInfo {
    hasNextPage: Boolean!
    hasPreviousPage: Boolean!
    startCursor: String
    endCursor: String
  }

  input UpdateUserInput {
    name: String
    email: String
  }

  scalar DateTime
`;

const resolvers = {
  Query: {
    user: async (_: unknown, { id }: { id: string }, ctx: Context) => {
      return ctx.loaders.user.load(id);
    },
    me: async (_: unknown, __: unknown, ctx: Context) => {
      if (!ctx.user) throw new Error('Not authenticated');
      return ctx.loaders.user.load(ctx.user.id);
    }
  },
  User: {
    // Resolved via DataLoader to prevent N+1
    organization: async (user: User, _: unknown, ctx: Context) => {
      return ctx.loaders.organization.load(user.organizationId);
    }
  },
  Mutation: {
    updateUser: async (
      _: unknown,
      { id, input }: { id: string; input: { name?: string; email?: string } },
      ctx: Context
    ) => {
      // Authorization check
      if (ctx.user?.id !== id && !ctx.user?.isAdmin) {
        throw new Error('Forbidden');
      }

      const user = await db.user.update({
        where: { id },
        data: input
      });

      // Clear cache
      ctx.loaders.user.clear(id);

      return user;
    }
  }
};

const schema = createSchema({ typeDefs, resolvers });

export const yoga = createYoga({
  schema,
  context: async ({ request }) => {
    const user = await authenticateRequest(request);
    return {
      user,
      loaders: createLoaders()
    };
  },
  // Security: Limit query complexity
  plugins: [
    useQueryComplexity({
      maximumComplexity: 100,
      variables: {},
      onComplete: (complexity) => {
        console.log('Query complexity:', complexity);
      }
    }),
    useDepthLimit({ maxDepth: 10 })
  ]
});

gRPC for Internal Services

// user_service.proto - gRPC service definition

syntax = "proto3";

package user.v1;

import "google/protobuf/timestamp.proto";
import "google/protobuf/empty.proto";

service UserService {
  // Unary RPC
  rpc GetUser(GetUserRequest) returns (User);
  rpc CreateUser(CreateUserRequest) returns (User);
  rpc UpdateUser(UpdateUserRequest) returns (User);
  rpc DeleteUser(DeleteUserRequest) returns (google.protobuf.Empty);

  // Server streaming - get user activity
  rpc GetUserActivity(GetUserActivityRequest) returns (stream ActivityEvent);

  // Client streaming - batch create users
  rpc BatchCreateUsers(stream CreateUserRequest) returns (BatchCreateResponse);

  // Bidirectional streaming - real-time presence
  rpc UserPresence(stream PresenceUpdate) returns (stream PresenceStatus);
}

message User {
  string id = 1;
  string email = 2;
  string name = 3;
  string organization_id = 4;
  google.protobuf.Timestamp created_at = 5;
  google.protobuf.Timestamp updated_at = 6;
}

message GetUserRequest {
  string id = 1;
}

message CreateUserRequest {
  string email = 1;
  string name = 2;
  string organization_id = 3;
}

message UpdateUserRequest {
  string id = 1;
  optional string email = 2;
  optional string name = 3;
}

message DeleteUserRequest {
  string id = 1;
}

message GetUserActivityRequest {
  string user_id = 1;
  google.protobuf.Timestamp since = 2;
}

message ActivityEvent {
  string id = 1;
  string type = 2;
  string description = 3;
  google.protobuf.Timestamp timestamp = 4;
}

message BatchCreateResponse {
  int32 created_count = 1;
  int32 failed_count = 2;
  repeated string failed_emails = 3;
}

message PresenceUpdate {
  string user_id = 1;
  PresenceState state = 2;
}

message PresenceStatus {
  string user_id = 1;
  PresenceState state = 2;
  google.protobuf.Timestamp last_seen = 3;
}

enum PresenceState {
  PRESENCE_STATE_UNSPECIFIED = 0;
  PRESENCE_STATE_ONLINE = 1;
  PRESENCE_STATE_AWAY = 2;
  PRESENCE_STATE_OFFLINE = 3;
}

gRPC Communication Patterns

Pattern	Use Case	Example
Unary	Request-response	GetUser, CreateUser
Server streaming	Large datasets, real-time events	GetUserActivity
Client streaming	Batch uploads	BatchCreateUsers
Bidirectional	Real-time communication	UserPresence

Interview Question: “When would you choose gRPC over REST?”

Strong Answer: “gRPC excels in specific scenarios:

1. Microservices communication: Binary protocol (protobuf) is 10x smaller and faster than JSON. Strongly typed contracts catch errors at compile time.

2. High throughput: HTTP/2 multiplexing allows many concurrent requests over single connection. No head-of-line blocking.

3. Streaming: Native support for server, client, and bidirectional streaming. Essential for real-time features.

4. Polyglot systems: Proto files generate clients/servers in 12+ languages. Ensures consistency across services.

However, REST wins for public APIs (browser support, ubiquity), simple CRUD (less tooling overhead), and when HTTP caching is important.”

---

GraphQL Security Considerations

GraphQL’s flexibility introduces unique security challenges:

Threat	Problem	Mitigation
Query depth attack	Deeply nested queries exhaust resources	Depth limiting (max 10-15)
Query complexity	Wide queries with many fields	Complexity scoring + limits
Batch attacks	Many operations in one request	Operation count limits
Introspection exposure	Schema reveals business logic	Disable in production
Field-level authorization	Not all users should see all fields	Resolver-level auth checks

// graphql-security.ts - Security middleware

import { createYoga } from 'graphql-yoga';
import { useDepthLimit } from '@escape.tech/graphql-armor-depth-limit';
import { useCostLimit } from '@escape.tech/graphql-armor-cost-limit';

export const yoga = createYoga({
  schema,
  plugins: [
    // Prevent deep nesting attacks
    useDepthLimit({ n: 10 }),

    // Prevent wide query attacks
    useCostLimit({
      maxCost: 1000,
      objectCost: 1,
      scalarCost: 0,
      depthCostFactor: 2,
    }),

    // Disable introspection in production
    process.env.NODE_ENV === 'production' && useDisableIntrospection(),
  ].filter(Boolean),
});

---

GraphQL Common Mistakes

Mistake	Problem	Fix
No DataLoader	N+1 queries, slow responses	Batch related queries
Over-fetching in resolvers	Fetching data not requested	Only resolve requested fields
No query complexity limits	DoS via expensive queries	Implement cost analysis
Introspection in prod	Schema exposure	Disable for production
No error masking	Stack traces leak to client	Custom error formatting
Mutations return void	Client needs to re-fetch	Return affected object

---

gRPC Error Handling

gRPC uses status codes different from HTTP:

gRPC Code	HTTP Equivalent	When to Use
OK (0)	200	Success
INVALID_ARGUMENT (3)	400	Bad request data
NOT_FOUND (5)	404	Resource doesn’t exist
ALREADY_EXISTS (6)	409	Duplicate creation
PERMISSION_DENIED (7)	403	Authenticated but unauthorized
UNAUTHENTICATED (16)	401	Missing/invalid auth
RESOURCE_EXHAUSTED (8)	429	Rate limited
INTERNAL (13)	500	Server error
UNAVAILABLE (14)	503	Service unavailable
DEADLINE_EXCEEDED (4)	504	Timeout

// error-details.proto - Rich error information

import "google/rpc/error_details.proto";

// Return detailed errors
rpc CreateUser(CreateUserRequest) returns (User) {
  // On validation error, return:
  // status: INVALID_ARGUMENT
  // details: [BadRequest with field_violations]
}

---

Migration from REST to GraphQL

// Step 1: GraphQL layer wraps existing REST endpoints
const resolvers = {
  Query: {
    user: async (_, { id }) => {
      // Initially, just proxy to REST
      const res = await fetch(`${REST_API}/users/${id}`);
      return res.json();
    }
  }
};

// Step 2: Add DataLoader for batching
const userLoader = new DataLoader(async (ids) => {
  const res = await fetch(`${REST_API}/users?ids=${ids.join(',')}`);
  return res.json();
});

// Step 3: Direct database access (final state)
const resolvers = {
  Query: {
    user: (_, { id }, ctx) => ctx.loaders.user.load(id)
  }
};

Phase	Effort	Risk	Performance
Proxy	Low	Low	Same as REST
Batching	Medium	Low	Better (fewer requests)
Direct DB	High	Medium	Best (optimal queries)

---

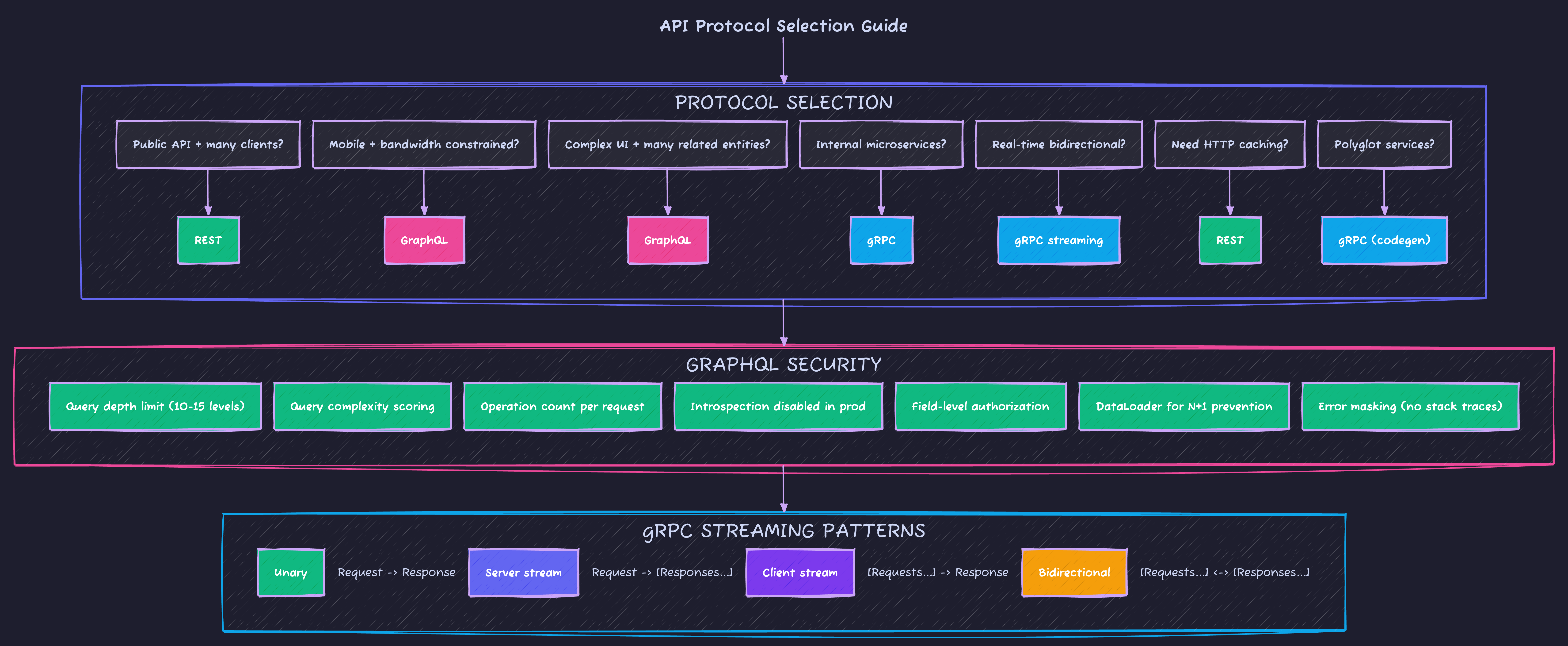

GraphQL & gRPC Quick Reference

---

What’s Next?

Now that you understand modern API protocols, Part 7: Resilience & Observability covers circuit breakers, retries, and monitoring patterns.
