API Design Part 1: HTTP & REST Fundamentals

API Design Mastery Series

This is Part 1 of our comprehensive API Design series. By the end, you’ll master everything from HTTP fundamentals to production-grade system design patterns.

Part	Topic	Level
1	HTTP & REST Fundamentals	Beginner
2	Security & Authentication	Beginner
3	Rate Limiting & Pagination	Intermediate
4	Versioning & Idempotency	Intermediate
5	Caching Strategies	Intermediate
6	GraphQL & gRPC	Intermediate
7	Resilience & Observability	Advanced
8	Production Mastery	Advanced

---

This is not another surface-level API tutorial. This is the comprehensive reference that senior engineers wish they had when they started. Let’s start with the foundations that every API is built upon.

The Complete HTTP Method Reference

Every developer knows GET and POST. But understanding the full HTTP vocabulary separates senior engineers from juniors.

Method	Idempotent	Safe	Cacheable	Request Body	Use Case
GET	Yes	Yes	Yes	No	Retrieve resources
POST	No	No	No	Yes	Create resources, complex queries
PUT	Yes	No	No	Yes	Full resource replacement
PATCH	No	No	No	Yes	Partial updates
DELETE	Yes	No	No	Optional	Remove resources
HEAD	Yes	Yes	Yes	No	Get headers only (check existence)
OPTIONS	Yes	Yes	No	No	CORS preflight, discover methods
TRACE	Yes	Yes	No	No	Debug request path (disable in prod)
CONNECT	No	No	No	No	Establish tunnel (HTTPS proxy)

The PUT vs PATCH Debate (Interview Deep Dive)

// The Order resource
interface Order {
  id: string;
  customerId: string;
  items: OrderItem[];
  status: 'pending' | 'processing' | 'shipped' | 'delivered';
  shippingAddress: Address;
  totalAmount: number;
  createdAt: Date;
  updatedAt: Date;
}

// PUT: Full replacement - you MUST send everything
// PUT /orders/123
{
  "customerId": "cust_456",
  "items": [{ "productId": "prod_789", "quantity": 2 }],
  "status": "processing",
  "shippingAddress": {
    "street": "123 Main St",
    "city": "NYC",
    "zip": "10001"
  },
  "totalAmount": 99.99
}

// If you omit shippingAddress, it becomes null/undefined!
// This is why PUT is dangerous for partial updates

// PATCH: Partial update - only what changes
// PATCH /orders/123
{
  "status": "shipped"
}

// Only status changes, everything else preserved

Interview Question: “When would you use PUT over PATCH?”

Strong Answer: “PUT for complete resource replacement where client owns the full state, like updating a configuration file. PATCH for field-level updates in CRUD applications. But here’s the nuance: PUT is idempotent by definition - sending the same PUT request twice has the same effect. PATCH’s idempotency depends on implementation. If PATCH increments a counter ({"views": "+1"}), it’s not idempotent. This matters for retry logic in distributed systems.”

Follow-up: “How would you make PATCH idempotent?”

Answer: “Use absolute values instead of deltas, add version/ETag checks, or use JSON Patch (RFC 6902) with test operations.”

HTTP Status Codes: The Complete Mental Model

Status codes aren’t just numbers - they’re a contract between your API and clients.

The Status Codes You Actually Need

// response-helpers.ts - Production-ready response utilities

interface ApiResponse<T> {
  success: boolean;
  data?: T;
  error?: {
    code: string;
    message: string;
    details?: Record<string, string[]>;
    traceId?: string;
  };
  meta?: {
    pagination?: PaginationMeta;
    rateLimit?: RateLimitMeta;
  };
}

// Success responses
export const ok = <T>(data: T, meta?: ApiResponse<T>['meta']): Response =>
  Response.json({ success: true, data, meta }, { status: 200 });

export const created = <T>(data: T, location?: string): Response => {
  const headers = location ? { Location: location } : {};
  return Response.json({ success: true, data }, { status: 201, headers });
};

export const accepted = (trackingUrl: string): Response =>
  Response.json(
    { success: true, data: { trackingUrl } },
    { status: 202, headers: { Location: trackingUrl } }
  );

export const noContent = (): Response =>
  new Response(null, { status: 204 });

// Client error responses
export const badRequest = (message: string, details?: Record<string, string[]>): Response =>
  Response.json({
    success: false,
    error: { code: 'BAD_REQUEST', message, details }
  }, { status: 400 });

export const unauthorized = (message = 'Authentication required'): Response =>
  Response.json({
    success: false,
    error: { code: 'UNAUTHORIZED', message }
  }, { status: 401, headers: { 'WWW-Authenticate': 'Bearer' } });

export const forbidden = (message = 'Insufficient permissions'): Response =>
  Response.json({
    success: false,
    error: { code: 'FORBIDDEN', message }
  }, { status: 403 });

export const notFound = (resource = 'Resource'): Response =>
  Response.json({
    success: false,
    error: { code: 'NOT_FOUND', message: `${resource} not found` }
  }, { status: 404 });

export const conflict = (message: string): Response =>
  Response.json({
    success: false,
    error: { code: 'CONFLICT', message }
  }, { status: 409 });

export const unprocessable = (message: string, details?: Record<string, string[]>): Response =>
  Response.json({
    success: false,
    error: { code: 'UNPROCESSABLE_ENTITY', message, details }
  }, { status: 422 });

export const tooManyRequests = (retryAfter: number): Response =>
  Response.json({
    success: false,
    error: {
      code: 'RATE_LIMITED',
      message: `Rate limit exceeded. Retry after ${retryAfter} seconds`
    }
  }, {
    status: 429,
    headers: { 'Retry-After': String(retryAfter) }
  });

// Server error responses
export const serverError = (traceId: string): Response =>
  Response.json({
    success: false,
    error: {
      code: 'INTERNAL_ERROR',
      message: 'An unexpected error occurred',
      traceId
    }
  }, { status: 500 });

export const serviceUnavailable = (retryAfter: number): Response =>
  Response.json({
    success: false,
    error: { code: 'SERVICE_UNAVAILABLE', message: 'Service temporarily unavailable' }
  }, {
    status: 503,
    headers: { 'Retry-After': String(retryAfter) }
  });

Interview Question: “What’s the difference between 401 and 403?”

Strong Answer: “401 means ‘I don’t know who you are’ - authentication failed or missing. 403 means ‘I know who you are, but you can’t do this’ - authenticated but not authorized. A common mistake is returning 403 for invalid tokens - that should be 401. And here’s a subtle point: some APIs return 404 instead of 403 for resources the user shouldn’t even know exist - this prevents information disclosure.”

Follow-up: “When would you use 422 vs 400?”

Answer: “400 for syntactically invalid requests - malformed JSON, wrong content-type, missing required fields. 422 for semantically invalid requests - the JSON is valid but the values don’t make business sense. For example, creating an order with quantity=-5 is 422, but {quantity: 'five'} is 400.”

REST Maturity Model (Richardson)

Understanding where your API sits on the maturity model helps communicate design decisions.

Level	Example	Characteristics
3 - HATEOAS	GET /orders/123 returns _links: {cancel, pay}	Clients discover actions from responses
2 - HTTP Verbs	GET /orders, POST /orders, DELETE /orders/123	Proper HTTP methods and status codes
1 - Resources	POST /getOrder, POST /createOrder	Multiple endpoints, RPC-style
0 - POX	POST /api with {action: "getOrder"}	Single endpoint, SOAP-like

Most production APIs target Level 2. HATEOAS (Level 3) is rarely worth the complexity unless you’re building a truly hypermedia-driven application.

---

URL Design Patterns That Scale

Resource Naming Conventions

Pattern	Good	Bad	Why
Plural nouns	/users, /orders	/user, /order	Consistency, collection semantics
Lowercase	/api/users	/api/Users	URLs are case-sensitive
Hyphens	/user-profiles	/user_profiles, /userProfiles	URL-friendly, readable
No verbs	POST /orders	POST /createOrder	HTTP method is the verb
Hierarchical	/users/123/orders	/orders?userId=123	Shows ownership clearly

Nested vs Flat Resources

// Hierarchical (shows relationship, limited scope)
GET /users/123/orders          // Orders for user 123
GET /users/123/orders/456      // Order 456 of user 123

// Flat (flexible, good for cross-cutting queries)
GET /orders?userId=123         // Same result, but can filter by more
GET /orders?status=pending&createdAfter=2025-01-01

// Rule of thumb:
// - Nest when child ONLY exists under parent
// - Flatten when child can be queried independently

Action Endpoints (When REST Doesn’t Fit)

// Some operations don't map to CRUD - use sub-resources
POST /orders/123/cancel        // Cancel order (not DELETE - order still exists)
POST /orders/123/refund        // Refund order
POST /users/123/verify-email   // Trigger verification
POST /reports/generate         // Start async report generation

// Return 200 for immediate actions, 202 for async

---

Content Negotiation

// Request specific format
fetch('/api/users', {
  headers: {
    'Accept': 'application/json',           // Preferred format
    'Accept-Language': 'en-US,en;q=0.9',    // Preferred language
    'Accept-Encoding': 'gzip, deflate'      // Compression
  }
});

// Server responds with what it provides
// Content-Type: application/json; charset=utf-8
// Content-Language: en-US
// Content-Encoding: gzip

// Version negotiation via Accept header
'Accept': 'application/vnd.api+json;version=2'

---

Common Mistakes to Avoid

Mistake	Problem	Fix
GET /users/delete/123	Using GET for mutations	DELETE /users/123
POST /search	POST for reads (not cacheable)	GET /search?q=term
200 for errors	Breaks client error handling	Use proper 4xx/5xx
404 for empty list	Empty list isn’t “not found”	200 with []
Ignoring Accept header	Forces single format	Support content negotiation
PUT for partial updates	Can accidentally nullify fields	Use PATCH

---

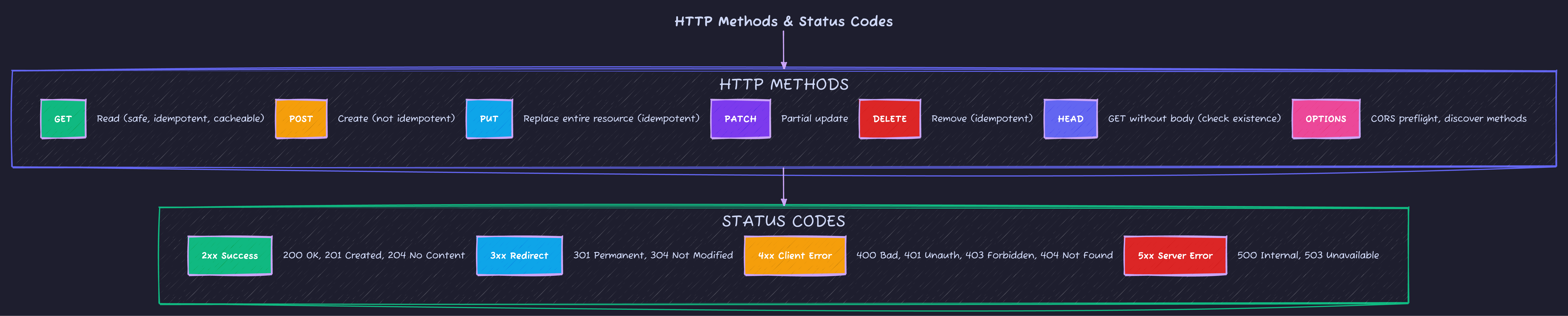

Quick Reference Card

---

What’s Next?

Now that you understand HTTP fundamentals and REST principles, Part 2: Security & Authentication covers JWT implementation, OAuth 2.0 flows, and the security layers that protect production APIs.
