Java 21 Virtual Threads: The Complete Guide to Million-Thread Concurrency

The Problem: Thread Limits Are Killing Your App

You’re building a service that needs to handle thousands of concurrent operations - API calls, database queries, file I/O. You spin up a thread pool:

var executor = Executors.newFixedThreadPool(5000);

Then you try to scale to 20,000 concurrent requests:

[warning][os,thread] Failed to start thread - pthread_create failed
java.lang.OutOfMemoryError: unable to create native thread

OS threads are expensive. Each one costs ~1MB of stack memory. Your server just hit the wall.

Quick Answer (TL;DR)

// Before Java 21: Limited to ~5,000 threads
var executor = Executors.newFixedThreadPool(5000);

// Java 21+: Millions of virtual threads, zero config
var executor = Executors.newVirtualThreadPerTaskExecutor();

// Or even simpler with Streams
Stream.of(tasks)
    .parallel()
    .collect(ParallelCollectors.parallel(this::process, toList()))
    .join();

Virtual threads scale to millions with no code changes.

What Are Virtual Threads?

Virtual threads (Project Loom) are lightweight threads managed by the JVM, not the OS. They’re scheduled onto a small pool of OS “carrier” threads.

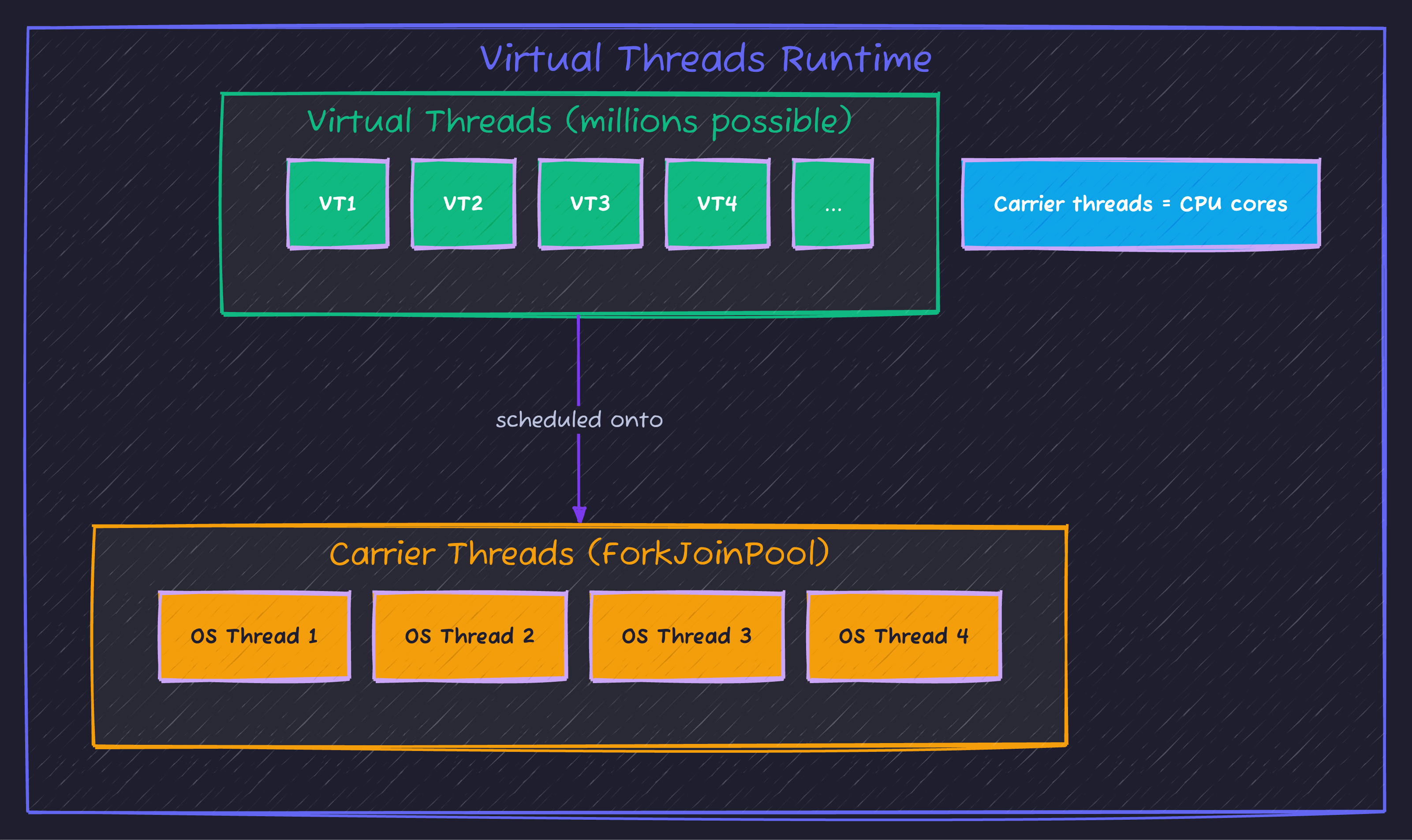

Virtual Threads Architecture

Key Differences

Aspect	OS Threads	Virtual Threads
Memory	~1MB stack each	~1KB each
Creation cost	Expensive (syscall)	Cheap (JVM managed)
Max count	~5,000-20,000	Millions
Blocking behavior	Blocks carrier	Unmounts, carrier freed
Best for	CPU-bound work	I/O-bound work

Benchmarks: OS Threads vs Virtual Threads

Let’s simulate a realistic I/O-bound workload - fetching user data with 1 second latency:

private static String fetchUser(int id) {
    try {
        Thread.sleep(1000); // Simulate I/O latency
    } catch (InterruptedException e) {
        Thread.currentThread().interrupt();
    }
    return "user-" + id;
}

Test 1: 5,000 Concurrent Operations

OS Threads:

var executor = Executors.newFixedThreadPool(5000);
// Result: 1,321 ms ✓

Virtual Threads:

var executor = Executors.newVirtualThreadPerTaskExecutor();
// Result: 1,101 ms ✓ (17% faster!)

Test 2: 20,000 Concurrent Operations

OS Threads:

[warning][os,thread] Failed to start thread "pool-1-thread-16111"
// CRASHED ✗

Virtual Threads:

// Result: 1,219 ms ✓

Test 3: Scaling to Millions

Concurrent Ops	OS Threads	Virtual Threads
5,000	1,321 ms	1,101 ms
20,000	CRASHED	1,219 ms
100,000	CRASHED	1,587 ms
1,000,000	CRASHED	6,416 ms
5,000,000	CRASHED	25,952 ms

Virtual threads scale linearly. OS threads hit a wall.

Step-by-Step Migration Guide

Step 1: Update to Java 21

<properties>
    <java.version>21</java.version>
</properties>

Step 2: Replace Thread Pools

Before:

// Fixed pool - limited by OS
ExecutorService executor = Executors.newFixedThreadPool(100);

// Cached pool - can explode memory
ExecutorService executor = Executors.newCachedThreadPool();

After:

// Virtual threads - scales automatically
ExecutorService executor = Executors.newVirtualThreadPerTaskExecutor();

Step 3: Use try-with-resources

try (var executor = Executors.newVirtualThreadPerTaskExecutor()) {
    List<Future<String>> futures = ids.stream()
        .map(id -> executor.submit(() -> fetchUser(id)))
        .toList();

    List<String> results = futures.stream()
        .map(f -> {
            try {
                return f.get();
            } catch (Exception e) {
                throw new RuntimeException(e);
            }
        })
        .toList();
}

Step 4: Or Use Parallel Collectors (Recommended)

<dependency>
    <groupId>com.pivovarit</groupId>
    <artifactId>parallel-collectors</artifactId>
    <version>3.0.0</version>
</dependency>

// Clean, functional style - virtual threads by default in v3.x
List<String> results = Stream.iterate(0, i -> i + 1)
    .limit(100_000)
    .collect(ParallelCollectors.parallel(
        id -> fetchUser(id),
        toList()
    ))
    .join();

When NOT to Use Virtual Threads

Virtual threads are not a silver bullet. Avoid them for:

Scenario	Why	Use Instead
CPU-bound work	No benefit - still limited by cores	`ForkJoinPool`
Synchronized blocks	Pins carrier thread	`ReentrantLock`
Native code/JNI	May pin carrier	OS threads
Thread-local heavy	Memory overhead per VT	Scoped values

Detecting Pinning

# Add JVM flag to detect carrier pinning
java -Djdk.tracePinnedThreads=full -jar app.jar

Fix Synchronized → ReentrantLock

Before (pins carrier):

synchronized (lock) {
    // blocking I/O here pins the carrier thread
    database.query();
}

After (carrier-friendly):

private final ReentrantLock lock = new ReentrantLock();

lock.lock();
try {
    database.query();
} finally {
    lock.unlock();
}

Spring Boot Integration

Spring Boot 3.2+ has built-in virtual thread support:

# application.yaml
spring:
  threads:
    virtual:
      enabled: true

This automatically configures:

Tomcat to use virtual threads for request handling
@Async methods to run on virtual threads
Scheduled tasks on virtual threads

Manual Configuration

@Configuration
public class VirtualThreadConfig {

    @Bean
    AsyncTaskExecutor applicationTaskExecutor() {
        return new TaskExecutorAdapter(
            Executors.newVirtualThreadPerTaskExecutor()
        );
    }

    @Bean
    TomcatProtocolHandlerCustomizer<?> protocolHandlerVirtualThreadExecutorCustomizer() {
        return protocolHandler -> {
            protocolHandler.setExecutor(
                Executors.newVirtualThreadPerTaskExecutor()
            );
        };
    }
}

Common Pitfalls

Pitfall	Symptom	Fix
Using `synchronized` with blocking I/O	Carrier pinning, poor scaling	Switch to `ReentrantLock`
Large thread-locals	High memory per VT	Use scoped values (preview)
Expecting CPU speedup	No improvement	Use ForkJoinPool for CPU work
Pooling virtual threads	Defeats the purpose	Create new VT per task

Don’t Pool Virtual Threads

Wrong:

// Don't do this - pooling defeats the purpose
var pool = Executors.newFixedThreadPool(100,
    Thread.ofVirtual().factory());

Right:

// Create a new virtual thread per task
var executor = Executors.newVirtualThreadPerTaskExecutor();

Production Checklist

Java 21+ in production
Spring Boot 3.2+ (if using Spring)
Replace newFixedThreadPool with newVirtualThreadPerTaskExecutor
Audit synchronized blocks for blocking I/O
Test with -Djdk.tracePinnedThreads=full
Monitor with JFR for virtual thread events
Load test to verify scaling

Code Repository

Complete examples with benchmarks:

GitHub: techyowls/techyowls-io-blog-public/java-21-virtual-threads

git clone https://github.com/techyowls/techyowls-io-blog-public.git
cd techyowls-io-blog-public/java-21-virtual-threads
./mvnw test  # Runs benchmarks
