Docker Compose for Spring Boot: Local Dev to Production

The Problem: “It Works on My Machine”

Your Spring Boot app runs perfectly locally. Then:

Teammate can’t run it - wrong Java version
QA environment has different Postgres version
Production Redis config doesn’t match dev
New developer takes 2 days to set up environment

Docker Compose solves this. One command, identical environment everywhere.

Quick Answer (TL;DR)

# docker-compose.yml
services:
  app:
    build: .
    ports:
      - "8080:8080"
    depends_on:
      postgres:
        condition: service_healthy
    environment:
      - SPRING_DATASOURCE_URL=jdbc:postgresql://postgres:5432/mydb

  postgres:
    image: postgres:16
    environment:
      POSTGRES_DB: mydb
      POSTGRES_PASSWORD: secret
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U postgres"]
      interval: 5s
      timeout: 5s
      retries: 5

docker compose up  # Everything starts, connected, healthy

Understanding Docker Compose

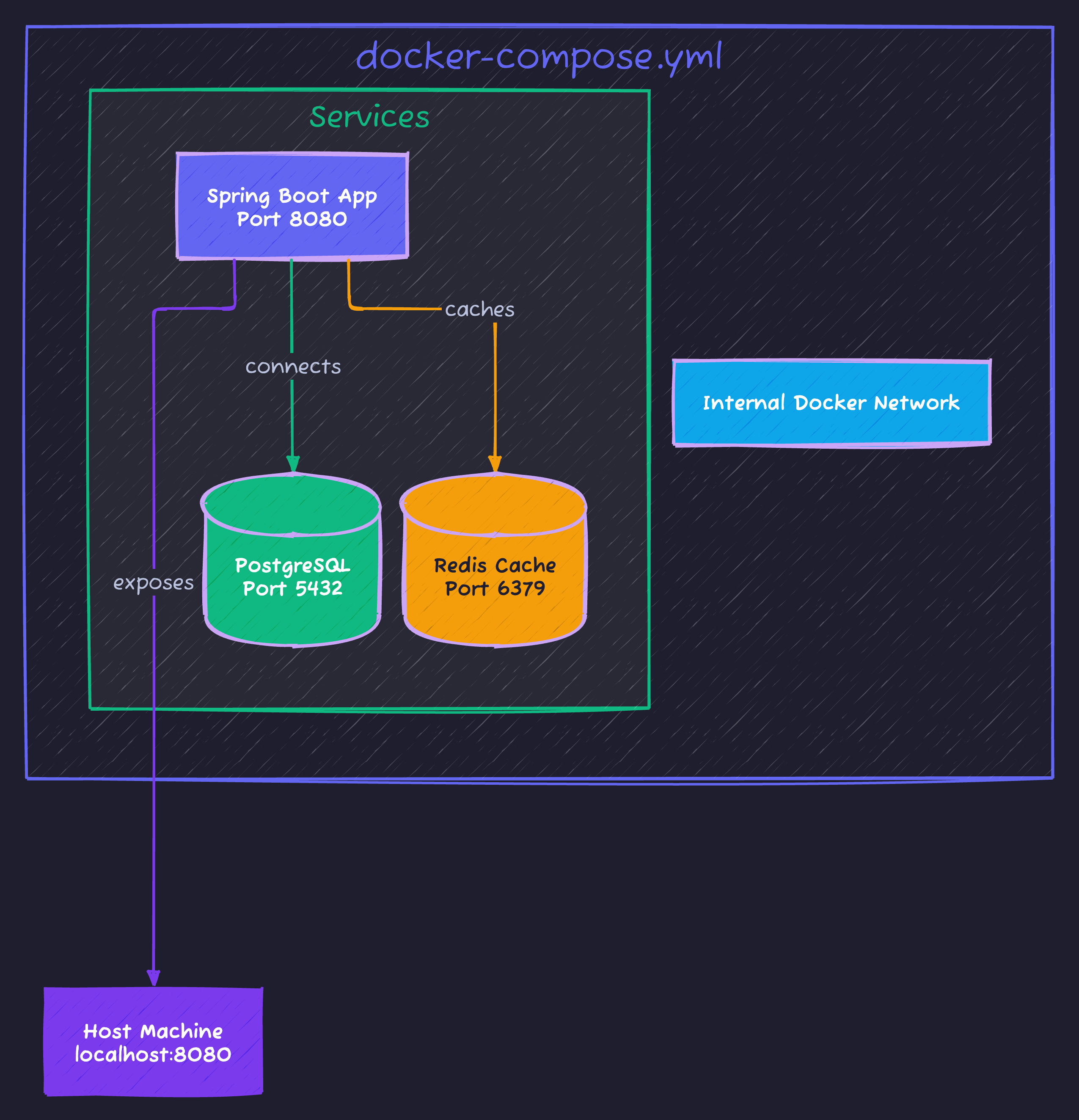

Docker Compose Architecture

Key Concepts

Concept	What It Does
Service	A container definition (app, database, cache)
Network	Services communicate by service name
Volume	Persist data beyond container lifecycle
Health check	Wait for service to be ready before starting dependents

Step-by-Step Setup

Step 1: Dockerfile for Spring Boot

# Dockerfile
FROM eclipse-temurin:21-jdk-alpine AS builder
WORKDIR /app
COPY . .
RUN ./mvnw package -DskipTests

FROM eclipse-temurin:21-jre-alpine
WORKDIR /app
COPY --from=builder /app/target/*.jar app.jar

# Non-root user for security
RUN addgroup -S spring && adduser -S spring -G spring
USER spring

EXPOSE 8080
ENTRYPOINT ["java", "-jar", "app.jar"]

Step 2: Basic docker-compose.yml

version: '3.8'

services:
  app:
    build:
      context: .
      dockerfile: Dockerfile
    ports:
      - "8080:8080"
    environment:
      - SPRING_PROFILES_ACTIVE=docker
      - SPRING_DATASOURCE_URL=jdbc:postgresql://postgres:5432/appdb
      - SPRING_DATASOURCE_USERNAME=postgres
      - SPRING_DATASOURCE_PASSWORD=secret
      - SPRING_DATA_REDIS_HOST=redis
    depends_on:
      postgres:
        condition: service_healthy
      redis:
        condition: service_started
    restart: unless-stopped

  postgres:
    image: postgres:16-alpine
    environment:
      POSTGRES_DB: appdb
      POSTGRES_USER: postgres
      POSTGRES_PASSWORD: secret
    volumes:
      - postgres_data:/var/lib/postgresql/data
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U postgres"]
      interval: 5s
      timeout: 5s
      retries: 5

  redis:
    image: redis:7-alpine
    volumes:
      - redis_data:/data

volumes:
  postgres_data:
  redis_data:

Step 3: Spring Profile for Docker

# application-docker.yml
spring:
  datasource:
    url: ${SPRING_DATASOURCE_URL}
    username: ${SPRING_DATASOURCE_USERNAME}
    password: ${SPRING_DATASOURCE_PASSWORD}
  data:
    redis:
      host: ${SPRING_DATA_REDIS_HOST:localhost}

Production-Ready Configuration

Multi-Stage Build (Smaller Images)

# Dockerfile.production
FROM eclipse-temurin:21-jdk-alpine AS builder
WORKDIR /app
COPY pom.xml .
COPY src ./src

# Cache dependencies
RUN --mount=type=cache,target=/root/.m2 \
    ./mvnw dependency:go-offline

RUN --mount=type=cache,target=/root/.m2 \
    ./mvnw package -DskipTests

# Extract layers for better caching
FROM eclipse-temurin:21-jdk-alpine AS extractor
WORKDIR /app
COPY --from=builder /app/target/*.jar app.jar
RUN java -Djarmode=layertools -jar app.jar extract

# Final image
FROM eclipse-temurin:21-jre-alpine
WORKDIR /app

# Add non-root user
RUN addgroup -S spring && adduser -S spring -G spring
USER spring

# Copy layers (changes less frequently → cached better)
COPY --from=extractor /app/dependencies/ ./
COPY --from=extractor /app/spring-boot-loader/ ./
COPY --from=extractor /app/snapshot-dependencies/ ./
COPY --from=extractor /app/application/ ./

EXPOSE 8080
ENTRYPOINT ["java", "org.springframework.boot.loader.launch.JarLauncher"]

Production docker-compose.yml

version: '3.8'

services:
  app:
    build:
      context: .
      dockerfile: Dockerfile.production
    ports:
      - "8080:8080"
    environment:
      - SPRING_PROFILES_ACTIVE=production
      - JAVA_OPTS=-XX:+UseG1GC -XX:MaxRAMPercentage=75
    deploy:
      resources:
        limits:
          memory: 512M
          cpus: '1'
        reservations:
          memory: 256M
    healthcheck:
      test: ["CMD", "wget", "-qO-", "http://localhost:8080/actuator/health"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 60s
    depends_on:
      postgres:
        condition: service_healthy
    restart: unless-stopped
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "3"

  postgres:
    image: postgres:16-alpine
    environment:
      POSTGRES_DB: ${DB_NAME}
      POSTGRES_USER: ${DB_USER}
      POSTGRES_PASSWORD: ${DB_PASSWORD}
    volumes:
      - postgres_data:/var/lib/postgresql/data
      - ./init.sql:/docker-entrypoint-initdb.d/init.sql:ro
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U ${DB_USER}"]
      interval: 10s
      timeout: 5s
      retries: 5
    deploy:
      resources:
        limits:
          memory: 256M

  redis:
    image: redis:7-alpine
    command: redis-server --appendonly yes --maxmemory 100mb --maxmemory-policy allkeys-lru
    volumes:
      - redis_data:/data
    deploy:
      resources:
        limits:
          memory: 128M

volumes:
  postgres_data:
  redis_data:

networks:
  default:
    driver: bridge

Common Patterns

Hot Reload for Development

# docker-compose.dev.yml
services:
  app:
    build:
      context: .
      target: builder  # Stop at builder stage
    volumes:
      - ./src:/app/src:ro
      - ./pom.xml:/app/pom.xml:ro
    command: ./mvnw spring-boot:run -Dspring-boot.run.jvmArguments="-agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=*:5005"
    ports:
      - "8080:8080"
      - "5005:5005"  # Debug port

docker compose -f docker-compose.yml -f docker-compose.dev.yml up

Database Migrations with Flyway

services:
  app:
    depends_on:
      flyway:
        condition: service_completed_successfully

  flyway:
    image: flyway/flyway:10
    command: migrate
    volumes:
      - ./src/main/resources/db/migration:/flyway/sql:ro
    environment:
      - FLYWAY_URL=jdbc:postgresql://postgres:5432/appdb
      - FLYWAY_USER=postgres
      - FLYWAY_PASSWORD=secret
    depends_on:
      postgres:
        condition: service_healthy

Multiple Environments

# Directory structure
├── docker-compose.yml          # Base config
├── docker-compose.dev.yml      # Dev overrides
├── docker-compose.prod.yml     # Prod overrides
└── .env.example                # Environment template

# Development
docker compose -f docker-compose.yml -f docker-compose.dev.yml up

# Production
docker compose -f docker-compose.yml -f docker-compose.prod.yml up -d

Health Checks Deep Dive

services:
  app:
    healthcheck:
      # Spring Boot Actuator health endpoint
      test: ["CMD", "wget", "-qO-", "http://localhost:8080/actuator/health"]
      interval: 30s      # Check every 30s
      timeout: 10s       # Fail if no response in 10s
      retries: 3         # Unhealthy after 3 failures
      start_period: 60s  # Grace period for startup

  postgres:
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U postgres -d appdb"]
      interval: 5s
      timeout: 5s
      retries: 5

  redis:
    healthcheck:
      test: ["CMD", "redis-cli", "ping"]
      interval: 5s
      timeout: 3s
      retries: 3

  elasticsearch:
    healthcheck:
      test: ["CMD-SHELL", "curl -s http://localhost:9200/_cluster/health | grep -q '\"status\":\"green\"\\|\"status\":\"yellow\"'"]
      interval: 30s
      timeout: 10s
      retries: 5

Spring Boot Actuator Setup

# application.yml
management:
  endpoints:
    web:
      exposure:
        include: health,info,metrics
  endpoint:
    health:
      show-details: when_authorized
      probes:
        enabled: true
  health:
    db:
      enabled: true
    redis:
      enabled: true

Networking Patterns

Service Discovery (by name)

// In Spring Boot, use service name as hostname
@Value("${spring.datasource.url}")
private String dbUrl;  // jdbc:postgresql://postgres:5432/appdb
                       //                   ^^^^^^^^ service name

External Services

services:
  app:
    extra_hosts:
      - "host.docker.internal:host-gateway"
    environment:
      # Connect to service running on host machine
      - EXTERNAL_API_URL=http://host.docker.internal:3000

Isolated Networks

services:
  app:
    networks:
      - frontend
      - backend

  postgres:
    networks:
      - backend  # Not accessible from frontend

  nginx:
    networks:
      - frontend

networks:
  frontend:
  backend:

Volume Patterns

Named Volumes (Recommended)

volumes:
  postgres_data:  # Docker manages location
  redis_data:

services:
  postgres:
    volumes:
      - postgres_data:/var/lib/postgresql/data

Bind Mounts (Development)

services:
  app:
    volumes:
      - ./src:/app/src:ro              # Read-only source
      - ./config:/app/config:ro        # Config files
      - ./logs:/app/logs               # Writable logs

Backup Strategy

# Backup postgres volume
docker run --rm \
  -v postgres_data:/data:ro \
  -v $(pwd)/backups:/backup \
  alpine tar czf /backup/postgres-$(date +%Y%m%d).tar.gz -C /data .

Commands Cheatsheet

Command	Purpose
`docker compose up`	Start all services
`docker compose up -d`	Start detached
`docker compose up --build`	Rebuild images
`docker compose down`	Stop and remove
`docker compose down -v`	Also remove volumes
`docker compose logs -f app`	Follow app logs
`docker compose exec app sh`	Shell into container
`docker compose ps`	List running services
`docker compose pull`	Pull latest images

Common Pitfalls

Pitfall	Symptom	Fix
No health check wait	App crashes on startup	Use `depends_on: condition: service_healthy`
Hardcoded localhost	Connection refused	Use service names (`postgres`, `redis`)
No volume for data	Data lost on restart	Add named volumes
Large images	Slow deployments	Use multi-stage builds, Alpine base
Root user	Security risk	Add non-root user in Dockerfile

Code Repository

Complete examples with multiple configurations:

GitHub: techyowls/techyowls-io-blog-public/docker-compose-spring-boot

git clone https://github.com/techyowls/techyowls-io-blog-public.git
cd techyowls-io-blog-public/docker-compose-spring-boot

# Development
docker compose -f docker-compose.yml -f docker-compose.dev.yml up

# Production simulation
docker compose -f docker-compose.yml -f docker-compose.prod.yml up -d
