The Interpreter Design Pattern: Build Your Own Language

The Problem: Evaluating Complex Expressions

Imagine you need to evaluate mathematical expressions like:

• "3 + 5"
• "10 - (2 * 3)"
• "sum(1, 2, 3)"

You could use eval() in some languages, but that’s dangerous. You need to:

1. Parse the expression into a structure
2. Evaluate the structure

Doing this with if-else or regex becomes unmaintainable quickly.

The Solution: The Interpreter Pattern

The Interpreter Pattern defines a grammar for a language and provides an interpreter to process sentences in that language.

Real-Life Analogy: Calculator 🧮

A calculator interprets button presses:

1. You press: 3, +, 5, =
2. Calculator parses it into: Add(3, 5)
3. Calculator evaluates: 8

The calculator has a grammar (numbers, operators) and an interpreter (evaluation logic).

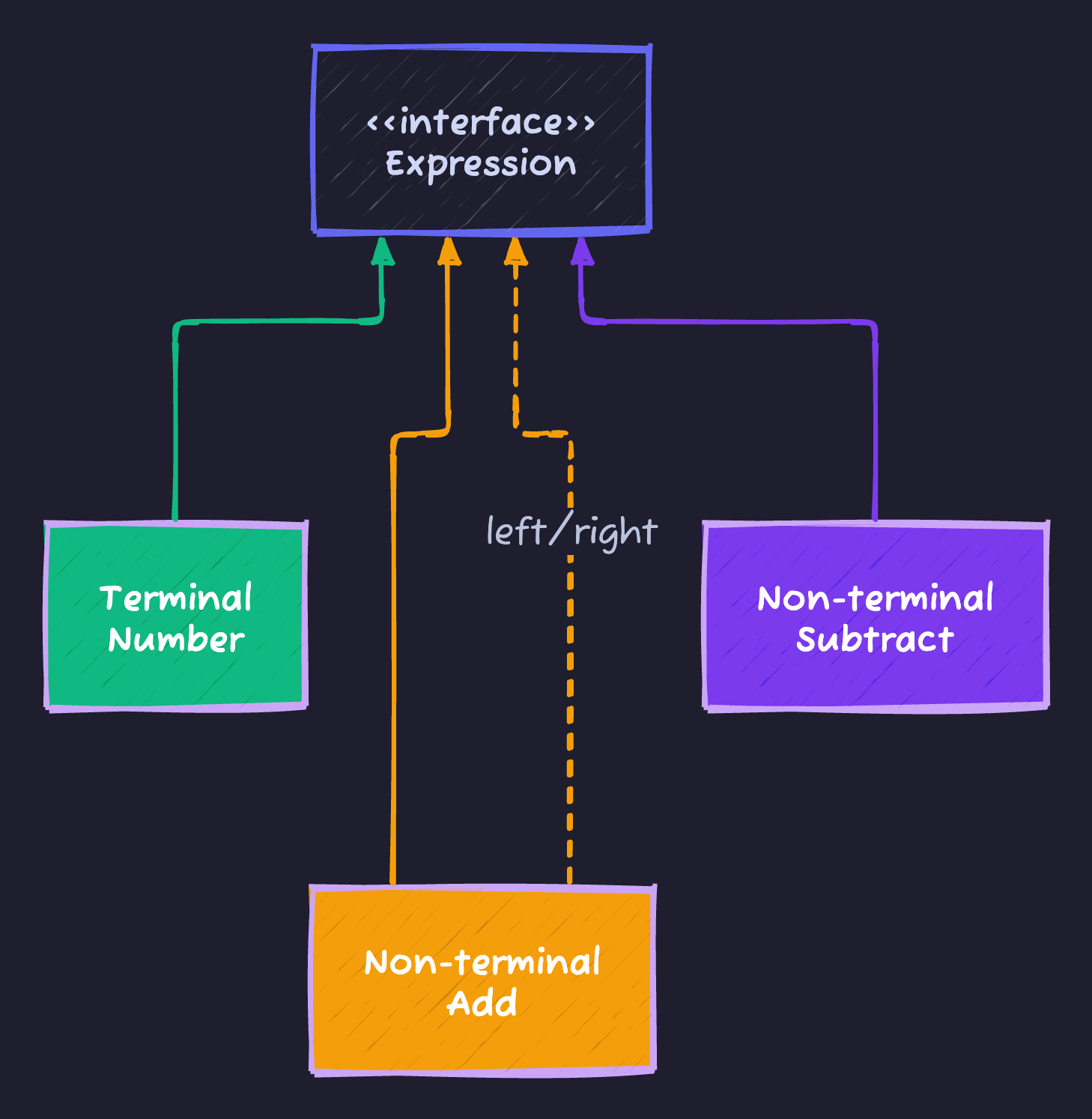

Visualizing the Pattern

Implementation

1. The Expression Interface

// Abstract Expression
public interface Expression {
    int interpret();
}

2. Terminal Expressions (Leaf Nodes)

// Terminal: Numbers
public class NumberExpression implements Expression {
    private int number;

    public NumberExpression(int number) {
        this.number = number;
    }

    @Override
    public int interpret() {
        return number;
    }
}

3. Non-Terminal Expressions (Operators)

// Non-terminal: Addition
public class AddExpression implements Expression {
    private Expression left;
    private Expression right;

    public AddExpression(Expression left, Expression right) {
        this.left = left;
        this.right = right;
    }

    @Override
    public int interpret() {
        return left.interpret() + right.interpret();
    }
}

// Non-terminal: Subtraction
public class SubtractExpression implements Expression {
    private Expression left;
    private Expression right;

    public SubtractExpression(Expression left, Expression right) {
        this.left = left;
        this.right = right;
    }

    @Override
    public int interpret() {
        return left.interpret() - right.interpret();
    }
}

Usage

// Build expression tree for: "10 - (3 + 2)"
Expression expr = new SubtractExpression(
    new NumberExpression(10),
    new AddExpression(
        new NumberExpression(3),
        new NumberExpression(2)
    )
);

int result = expr.interpret();
System.out.println("Result: " + result); // 5

Real Parser Example

For a simple language like "x + 5" with variables:

public class VariableExpression implements Expression {
    private String variableName;

    public VariableExpression(String name) {
        this.variableName = name;
    }

    @Override
    public int interpret(Context context) {
        return context.getValue(variableName);
    }
}

// Context stores variable values
class Context {
    private Map<String, Integer> variables = new HashMap<>();

    public void setValue(String name, int value) {
        variables.put(name, value);
    }

    public int getValue(String name) {
        return variables.getOrDefault(name, 0);
    }
}

// Usage:
Context ctx = new Context();
ctx.setValue("x", 10);

Expression expr = new AddExpression(
    new VariableExpression("x"),
    new NumberExpression(5)
);

System.out.println(expr.interpret(ctx)); // 15

In The Wild (Real World Examples)

1. Regular Expressions

The Pattern class is an interpreter for regex grammar:

Pattern pattern = Pattern.compile("\\d+"); // Grammar
Matcher matcher = pattern.matcher("123"); // Interpret

2. SQL Parsers

Databases parse SQL into an AST and execute it:

SELECT * FROM users WHERE age > 18
-- Parsed into expression tree and executed

3. Spring Expression Language (SpEL)

ExpressionParser parser = new SpelExpressionParser();
Expression exp = parser.parseExpression("'Hello ' + 'World'");
String message = (String) exp.getValue(); // "Hello World"

When to Use Interpreter

✅ Use when:

• Grammar is simple
• Performance is not critical
• Need to evaluate expressions frequently (DSL, config)

❌ Don’t use when:

• Grammar is complex (use parser generators like ANTLR)
• Performance is critical (interpreter is slow)

Cheat Sheet

Feature	Details
Category	Behavioral
Problem Solved	Evaluating sentences in a language/grammar
Key implementation	Expression tree + interpret() method
Pros	Extensibility (add new grammar rules easily)
Cons	Performance (tree traversal is slow), Complexity (for large grammars)

Tips to Remember 🧠

• “Expression Tree”: Think of AST (Abstract Syntax Tree) in compilers.
• “Recursive”: Interpret is usually recursive (non-terminals call children’s interpret).
• “Rarely used in apps”: More common in compilers, parsers, DSLs than business apps.
